Pro Signature style amplification.

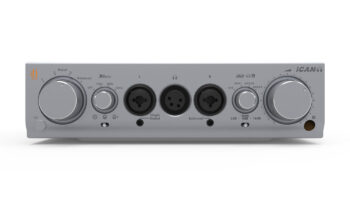

The Pro iCAN Signature is our new flagship analogue headphone amplifier and stereo preamplifier.
Knows no fear
The Pro iCAN Signature is our new upgraded edition of the original Pro iCAN.
The Signature edition builds on the strengths of the Pro iCAN and features even more ultra-grade audiophile components designed to take your listening to a higher plane than ever before.
It is a top-of-the-line headphone amplifier that is capable of driving anything and everything from the most sensitive custom iEMs to the AKG K-1000, the most difficult to drive headphone ever made.
Amp it up to ultra
Enhancements to the Pro iCAN Signature include:
- Revised circuit design incorporates even more ultra-grade audiophile components
- Upgraded power supply circuits to eradicate even more noise and distortion
- Top of the range iPower Elite offboard AC/DC power supply included
- Hand-selected and matched tubes in the output stage
- 4.4mm Balanced-headphone output
- New aluminium remote control
Beautifully balanced Pro power
The Pro iCAN Signature sports an end-to-end fully differential balanced circuit design that delivers ultra low distortion. This means extraordinary quality with minimal interference and reduced crosstalk. The sound is cleaner, deeper and more dynamic.
It is also exceptionally powerful and will drive any headphone on the planet. It boasts balanced output power of >14,000mW and single-ended power output of >4,800mW.
And with variable gain, you can adjust the Pro iCAN Signature to drive your headphone of choice.
To tube or not to tube…?
Or to Tube+? That is the question.
With the Pro iCAN Signature you can enjoy the sound of solid-state or tubes in one single package.
For some of your recordings, and depending on whether you are listening through headphones or speakers, you may prefer the ‘lively’ feel of solid-state or for others, the more ‘luxurious’ feel of Tube or Tube+.
The choice is yours at the flick of a switch in real time.
Signature by name…
The Pro iCAN Signature wouldn’t be ours without our signature sonic tweaks. Just like the original, it boasts XBass and 3D Holographic settings so that you can calibrate sound to suite your system and personal taste.
XBass is our analogue ‘bass boost’ that enhances the low frequencies without muddying the mid-range.
3D Holographic for Headphones undoes the negative sonic impact of listening to recordings that were originally created for loudspeakers.
3D Holographic for Loudspeaker Systems corrects the spatial distortion and restores the natural soundstage.

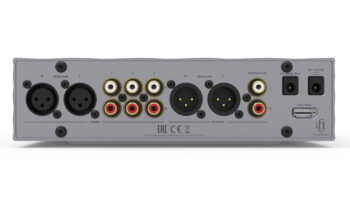

Get connected
The Pro iCAN Signature boasts a plethora of fully balanced and single-ended connections.
Headphone connections include the new 4.4mm Balanced output as well as a fully balanced XLR, a single-ended 6.3mm and our unique S-Balanced 3.5mm output.
Our S-Balanced output cuts distortion by 50% with single-ended headphones connections.
Specifications:
| Gain (user-selectable) | 0dB, 9dB and 18dB | ||
| Headphone outputs | XLR 3-pin XLR 4-pin 6.3mm 6.3mmBAL 4.4mm SE 3.5mm |
Balanced separate left and right sockets Balanced stereo SE stereo positive phase SE stereo inverted phaseBuilt-in IEMatch -18dB Built-in IEMatch -14dB |
|
| Frequency Response | 0.5Hz to 500kHz(-3dB) | ||
| THD & N | Balanced | Solid-State Tube Tube+ |
0.0015% 0.002% 0.012% |
| Single- Ended | Solid-State Tube Tube+ |
0.005% 0.005% 0.2% |
|
| SNR | Balanced Single-Ended |
>147dB(A) > 137dB(A) |
|
| Output Power | Balanced Single-Ended |
>14,000mW (@ 16) >4,800mW (@ 16) |
|
| Output Voltage | Balanced Single-Ended |
>23V (@ 600) >11.5v (@ 600) |
|
| Input voltage (Pro iDSD Signature) | DC 9V/6.7A – 18V/3.35A | ||
| Input voltage (iPower Elite) | AC 85 – 265V, 50/60Hz | ||
| Power consumption | < 22W idle, 50W max | ||
| Dimensions | 213 x 193 x 63 mm 6.2″ x 3.9″ x 1.4″ |
||
| Net weight | 1.93 kg 4.3 Ibs |
