High-resolution Bluetooth DAC.
Our ultra-affordable hi-res Bluetooth® DAC just got even better!
Hi-res to the nth degree.
All current and future Bluetooth® audio formats are supported.
This includes Qualcomm’s aptX and aptX HD, aptX Low Latency, aptX Adaptive, LDAC and HWA/LHDC, hi-res Bluetooth® codecs created by Sony and Huawei respectively, AAC, Apple’s favoured format and SBC, the standard Bluetooth® codec.
This means every possible source device is covered, at the highest resolution Bluetooth® specification. And future codecs can be added with Over the Air updates.
Enjoy. Your way.
Chill with the best of both worlds.

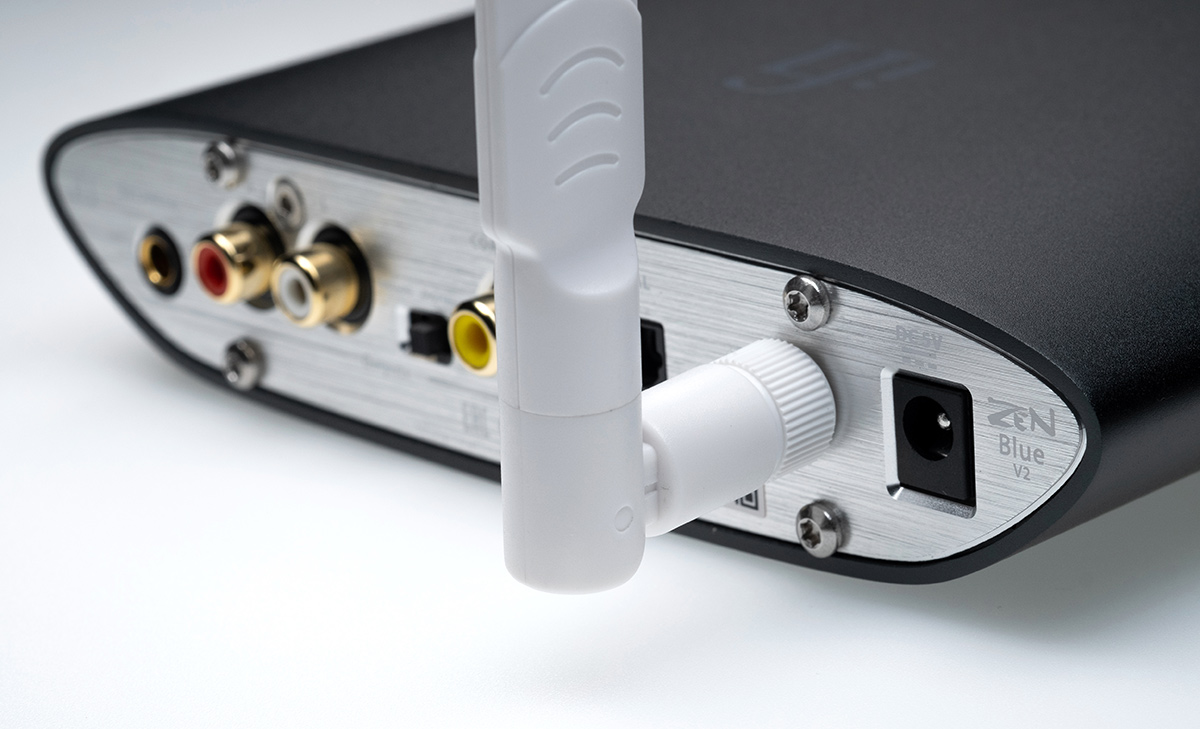

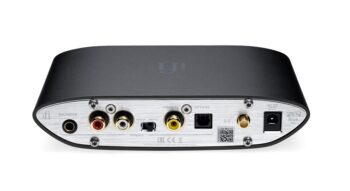

Analogue – connect via RCA to amps or active speakers or via the 4.4mm output to amps/speakers with a balanced input.
Digital – use the optical and coaxial connections to connect to anything with a built-in DAC and corresponding digital input – your TV, an AV amp or an external DAC in your hi-fi set-up.
Specifications:
| Power Source | DC5V |
| Chipset | Qualcomm QCC 5100 Series |
| Input | Bluetooth 5.0™ with AAC, SBC, aptX, aptX HD, aptX Adaptive, aptX LL, LDAC, HWA Codec |
| Output | Optical/Coaxial, Audio RCA L/R, 44 Balanced Lineout |
| Frequency Response | 20Hz – 20kHz <+0/-0.5dB (44.1kHz) 1Hz – 44khz <+0/-3.0dB (>= 88.2kHz) |
| Output Voltage @ OdBFS | 2.05V (+/-0.05V) |
| Dynamic Range | 109dB (A) |
| Signal/Noise ratio | 109dB (A) @ OdBFS |
| THD & N @ OdBFS | <0.0015% 10k Load |
| Output Impedance | <50Ω |
| Power Consumption | <2.5W |
| Dimensions | 158 (I) x 100 (w) x 35 (h) mm |
| Weight | 476g (1.05 Ibs) |
