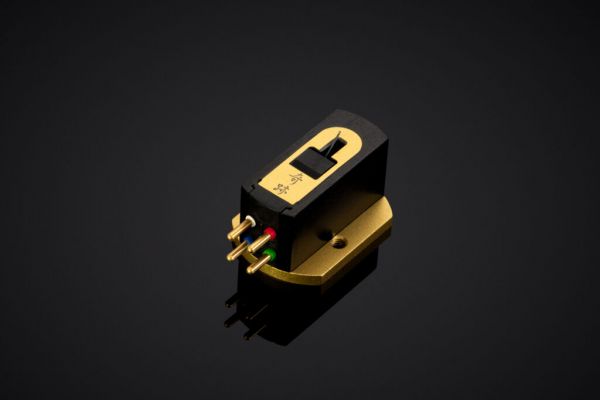

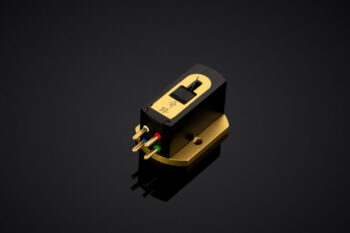

We proudly present to you our new kiseki BlackHeart N.S.
Initially, the Kiseki BlackHeart model was introduced in the ’80s.
Like then, the body of the new BlackHeart N.S. has been machined out of solid Blackheart wood, but has now the smaller size ( short body ), like the Kiseki Blue N.S.
The motor is based on the same parts we are using for the other current Kiseki N.S. models.
The BlackHeart N.S. is the first model using a solid nude diamond mounted IN and THROUGH the Boron cantilever, instead of mounted ON the cantilever. This results in a mechanically better construction for better signal reproduction as well as higher mechanical reliability.
Our BlackHeart N.S. is available through official dealers of our Kiseki distributors. For an overview of our Kiseki distribution network you can click HERE
MC Kiseki BlackHeart N.S. – SPECIFICATIONS
-
Body: BlackHeart Wood, 25 mm long
-
Cantilever: Solid Boron Rod: 0.28 mm diameter
-
Stylus: 0,08 x 0,14 mirror polished diamond
-
Stylus tip radius: 3 x 30 μm
- Stylus mount: In cantilever
-
Vertical Tracking Angle (VTA): 20 degrees
-
Coilbody: pure iron
-
Weight: 6.4 grams
-
Output voltage: 0,48mV at 5cm/s
-
Internal impedance: 40 ohm
-
Frequency response: 20 – 30.000Hz ± 1dB
-
Channel balance: 0.2dB
-
Channel Separation: 35dB at 1kHz
-
Tracking ability at 315Hz at a tracking force of 2.6 grams: 80 μm
-
Dynamic Compliance: 16 μm/mN
-
Recommended loading: 400 ohms
-
Recommend tracking force: 2.0 – 2.6 grams
-
Optimum tracking force: 2.4
-
Recommended tone arm mass: Medium
-
Optimum working temperature: 20 °C
-
Break-in period: 50 – 100 hours
