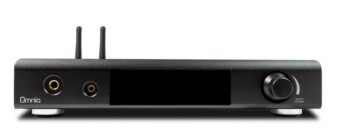

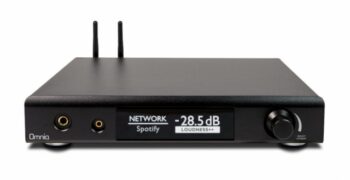

Omnia A300SE

Feature Highlights

• Amplifier capable of 2 x 150W @ 8 ohms and 2 x 200W @ 4 ohms power
• Wi-Fi 24-bit/192kHz and Bluetooth 5.0 aptX HD streaming. Mobile devices can stream Bluetooth music to Omnia A300SE, but it can not stream to Bluetooth earphones.
• Multiple digital and analog inputs, with up to IIS 32-bit/768kHz, USB 24-bit/384kHz, and DSD256 decoding

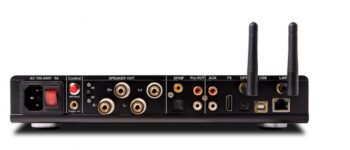

• Coaxial, Optical and analog Pre-Out
• Supports all major online streaming services (Amazon Music, iHeartRadio, Qobuz, QQ Music, Spotify*, TIDAL*, TuneIn, Napster, Ximalaya), AirPlay 2, and network DLNA

The free iOS and Android app allow you to easily control your smart music system and select your source music and group destination speakers (including receiving streamers).

Streaming Hi-Res

• Supported "CD Quality" Streaming Services: Tidal HiFi
• Supported Hi-Res Streaming Services: Qobuz Hi-Res, Tidal Master
• Spotify Connect and TIDAL Connect are supported.
• Deezer HiFi is not supported

Technical Highlights

A combination of high-power Class-D amplifier, 64-bit quad-core Arm Cortex-A53 processor, NuPrime proprietary SRC chip, Cirrus Logic CS43131 DAC, plus other audiophile-grade components enable the Omnia A300SE to achieve world class performance above its peers.

Amlogic A113X
64-bit quad-core Arm Cortex-A53 processor
for high resolution wireless streaming

Audiophile-grade components & noise filter

Bluetooth Wireless HD Qualcomm aptX HD supports 24-bit music quality over Bluetooth

The Omnia A300SE utilizes a compact yet powerful Class-D amplifier capable of signal bandwidth up to 100kHz with advanced integrated feedback design and error correction for very low noise and distortion. The Cirrus Logic CS43131 combines a next-generation, low power audio DAC with a high-fidelity headphone amplifier to provide a superior system-level audio performance. The onboard low noise, ground-centered headphone amplifier provides proprietary AC impedance detection to support headphone fingerprinting to provide a consistent and transparent audio experience for the end user regardless of transducer impedances or frequency responses.

SPECIFICATIONS

Amplifier

• Power: 150W @ 8 ohms; 200W @ 4 ohms (both channels driven)
• THD:
  • <0.02% (AUX IN, 1W, @ 8 & 4 ohms)
  • <0.01% (OPT IN, 1W, @ 8 & 4 ohms)
• Signal-to-Noise Ratio: >95 dB (Digital input, 10W out @ 8 ohms)
• Clipping Power: >230W (1kHz @ 4 ohms, both channels driven)
• Frequency Response: +0.6 dB/-1dB (12 Hz – 22 kHz)
• Channel Separation: >85dB (1 kHz AUX); >105 dB (10 kHz Digital)
• Input Sensitivity:
  • 0.85V (AUX & OPT) for 100W @ 8 ohms
  • 0.75V (AUX & OPT) for 100W @ 4 ohms
• Standby Power: <0.5W

DAC & Wireless

• Bit Depths: 16-32 bit
• Streaming Audio Processing Engine: up to 192KHz / 24-bit
• IIS/DSD HDMI Input: PCM up to 768KHz/32Bit and DSD up to DSD256
• USB PCM/DSD Input: PCM up to 384kHz/32Bit and DSD up to DSD256
• Optical S/PDIF Input: PCM up to 192KHz and supporting DoP format DSD64
• Optical, Coaxial and analog Pre-Out
• Bluetooth: Receiving only**
• Network Connectivity: Gigabit Ethernet RJ45, 802.11 b/g/n Wi-Fi

** Mobile devices can stream Bluetooth music to Omnia A300SE, but it can not stream to Bluetooth earphones.

Dimension and Weight

• Product Dimensions (W x H x D): 280 x 55 x 250 mm (includes feet and extended rear panel terminals)
• Product Weight: 3 kg (6.6 lbs.)
• Package Dimensions (W x H x D): 440 x 100 x 340 mm
• Shipping Weight: 5 kg (11 lbs.)

All specs are measured according to IHF 202 CEA 490-AR-2008 standard. THD is measured using AP AUX 0025 passive filter and AES 17 active filter.
