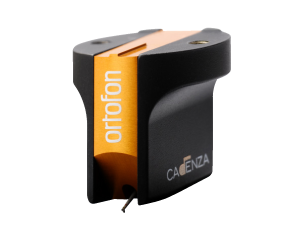

Ortofon Cadenza Bronze

The Cadenza Bronze model is using a Replicant 100 stylus and a conical aluminium cantilever.

The coil wire is the famous Ortofon Aucurum wire, which is a gold plated 6NX copper wire.

Field Stabilizing Element FSE, is used for optimal linearity especially during complex crescendo passages.

Technical data
Output voltage at 1000 Hz, 5cm/sec.	0,4 mV
Channel balance at 1 kHz	< 1 dB
Channel separation at 1 kHz	> 24 dB
Channel separation at 15 kHz	> 20 dB
Frequency range at – 3dB	20 – 55 kHz
Frequency response 20 Hz – 20 kHz	+/-1,5
Tracking ability at 315Hz at recommended tracking force *)	80 µm
Compliance, dynamic, lateral	12 µm/mN
Stylus type	Nude Ortofon Replicant on conical alu cantilever
Stylus tip radius	r/R 5/100 µm
Tracking force range	2,2-2,7 g (22-27 mN)
Tracking force, recommended	2,5 g (25 mN)
Tracking angle	23°
Internal impedance, DC resistance	5 Ohm
Recommended load impedance	50-200 Ohm
Cartridge body material	Stainless steel / Aluminium
Cartridge colour	Bronze/Black
Cartridge weight	10,7 gram

*) Typical value
