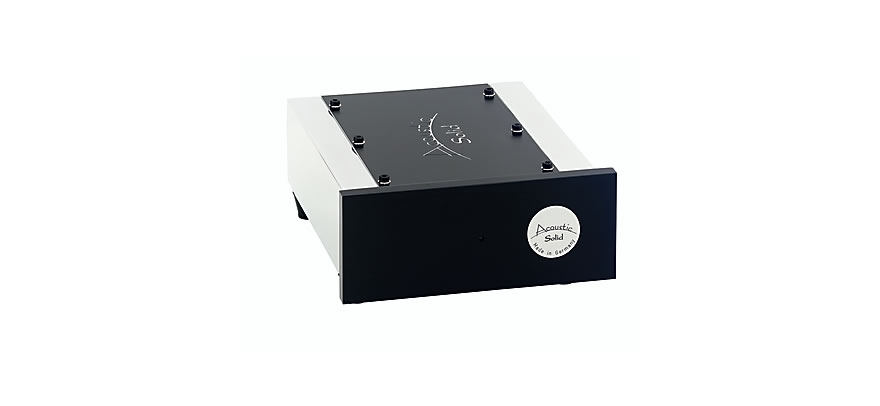

| Phono-Preamplifier Technical Details: Frequency response: 10 Hz … 20 kHz (+-0,2dB) Distortion: < 0,005% Signal-to-noise: > 99 dBA bis > 76 dBA relative to 2 V rms Rated output voltage depending on gain Crosstalk attenuation: > 103 dB relative to 2 V rms Rated output voltage Input impedance per Input: 50 Ohm … 680 Ohm in 10 Ohm stseps and 47 kOhm Input capacitance per Input: 100 pF … 600 pF in 50 pF steps Amplification: +32dB … +64dB at 1 kHz in 4 dB steps Output Level: 10 V rms max. Output current: 35 mA rms max. Output Impedance: 50 Ohm Dimensions: 140 x 64 x 178 mm Weight: approx. 1 kg Subject to modifications. |
